Great heat resistance performance,stable chemical property
High light transmission
Various thicknesses for you to choose
Wide optical application
Borosilicate 3.3 serves as a material of true function and wide applications

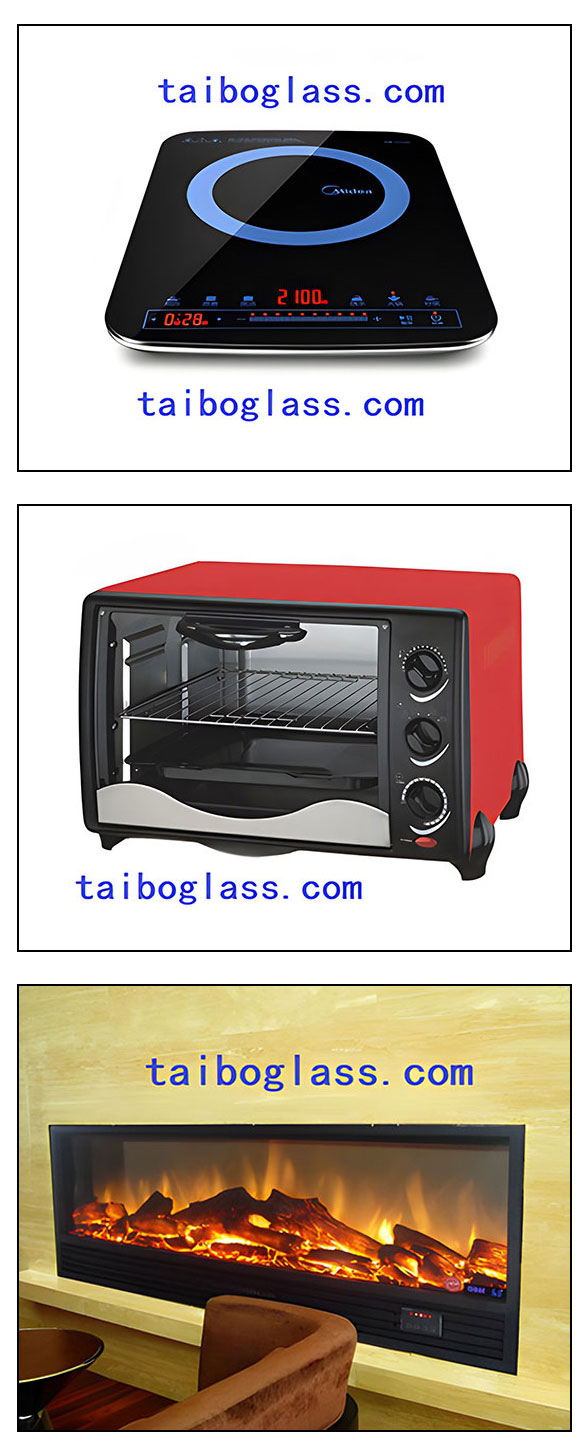

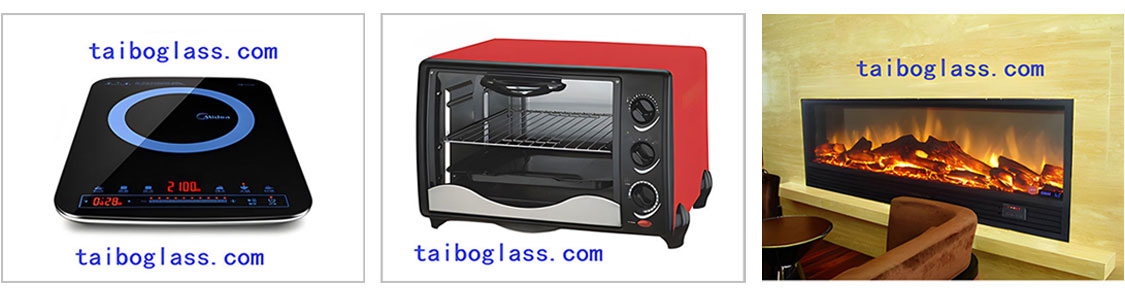

(1) Household electrical appliance (panel for oven and fireplace, microwave tray etc.)
(2) Environmental engineering and chemical engineering (lining layer of repellence, autoclave of chemical reaction and safety spectacles)
(3) Lighting (spotlight and protective glass for jumbo power of floodlight)
(4) Power regeneration by solar energy (solar cell base plate)
(5) Fine instruments (optical filter)
(6) Semi-conductor technology (LCD disc, display glass)
(7) Medical technique and bio-engineering
(8) Safety protection (bullet proof glass)
Technical Data :
| Dimensions (mm) : | 1150*850 1700*1150 1200*800 1600*1200 other formats upon request |
| Available thickness(mm) : | 2.0-20 |
| Density (g/cm3 ) (at 25℃) : | 2.23±0.02 |
| Co-efficient of expansion(20-300C) : | 3.3±0.1x10-6 |
| Softening point(℃) : | 820±10 |
| Identical temperature difference(K) : | 100 |
| Thermal shock resistance (K) : | ≥125 |
| Maximum working temperature(℃) : | ≥450 |
| Refractive nd : | 1.47384 |
| Light transmission : | 92%( thickness≤4mm )
91%( thickness≥5mm ) |
| Processing : | pre-cut formats, edge processing, drilling, coating, semi-tempering, printing,etc |
Glass that stays at all times
Float quality with outstanding fire resistance
High resistance to thermal shock
Without self-explosion

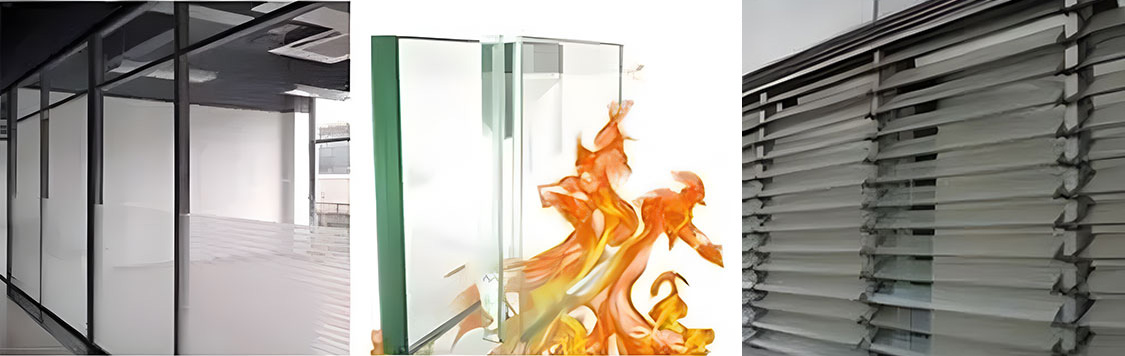

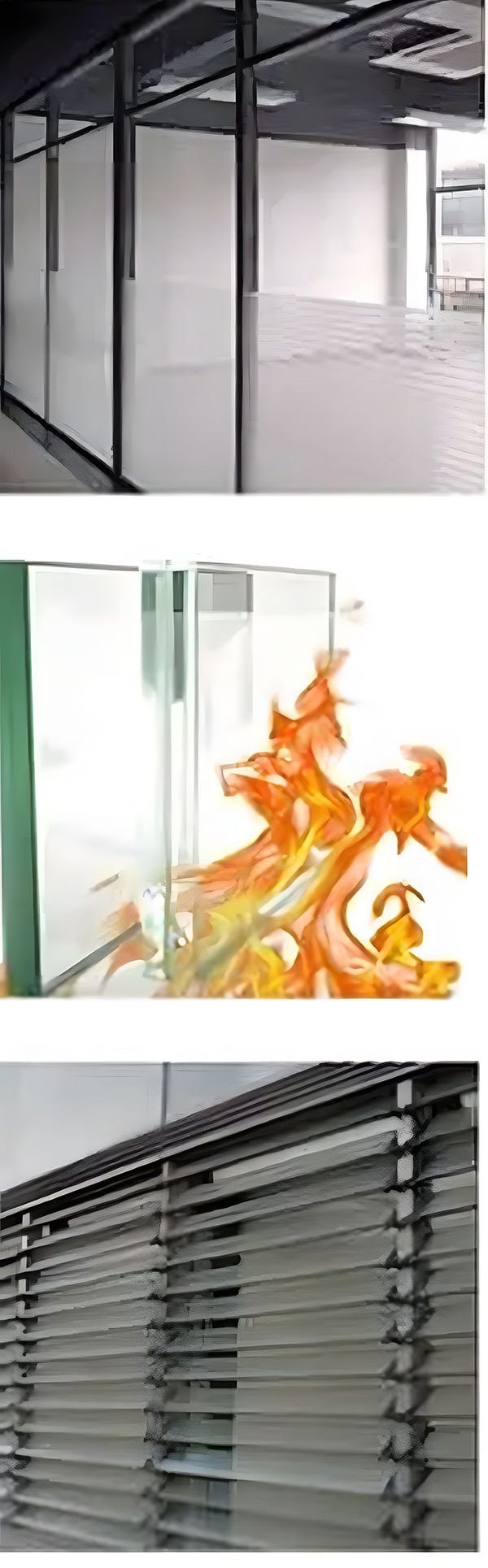

Fire-resistant glass for doors and windows
Fire-resistant glass for cut off
Sealed insulating glass
Glass used in curtain walls
Fire-resistant glass for ceiling, floor
Technical Data :
| Dimensions : | 2200*2440 2200*3660
other formats upon request |
| Available thickness : | 5mm--20mm |
| Processing : | pre-cut formats, edge processing |
| Density (at 25C ) : | 2.28±0.02g/cm3 |
| Co-efficient of expansion(20-300℃) : | 4.0±0.1x10-6 |
| Softening point : | 845℃±5℃ |
| Integrity : | C級|類(≥180min) |
| Executive standard : | GB15763.1-2001 |
1. Borosilicate single piece fire-resistant glass cannot be used in situation that has clear request for heat insulation or heatproof radiation function.
2. Borosilicate single piece fire-resistant glass is spe- cially processed safety glass. After the shape processing, it cannot be processed.
3. Avoid borosilicate single piece fire-resistant glass surface being scratched when moving and installing it.
